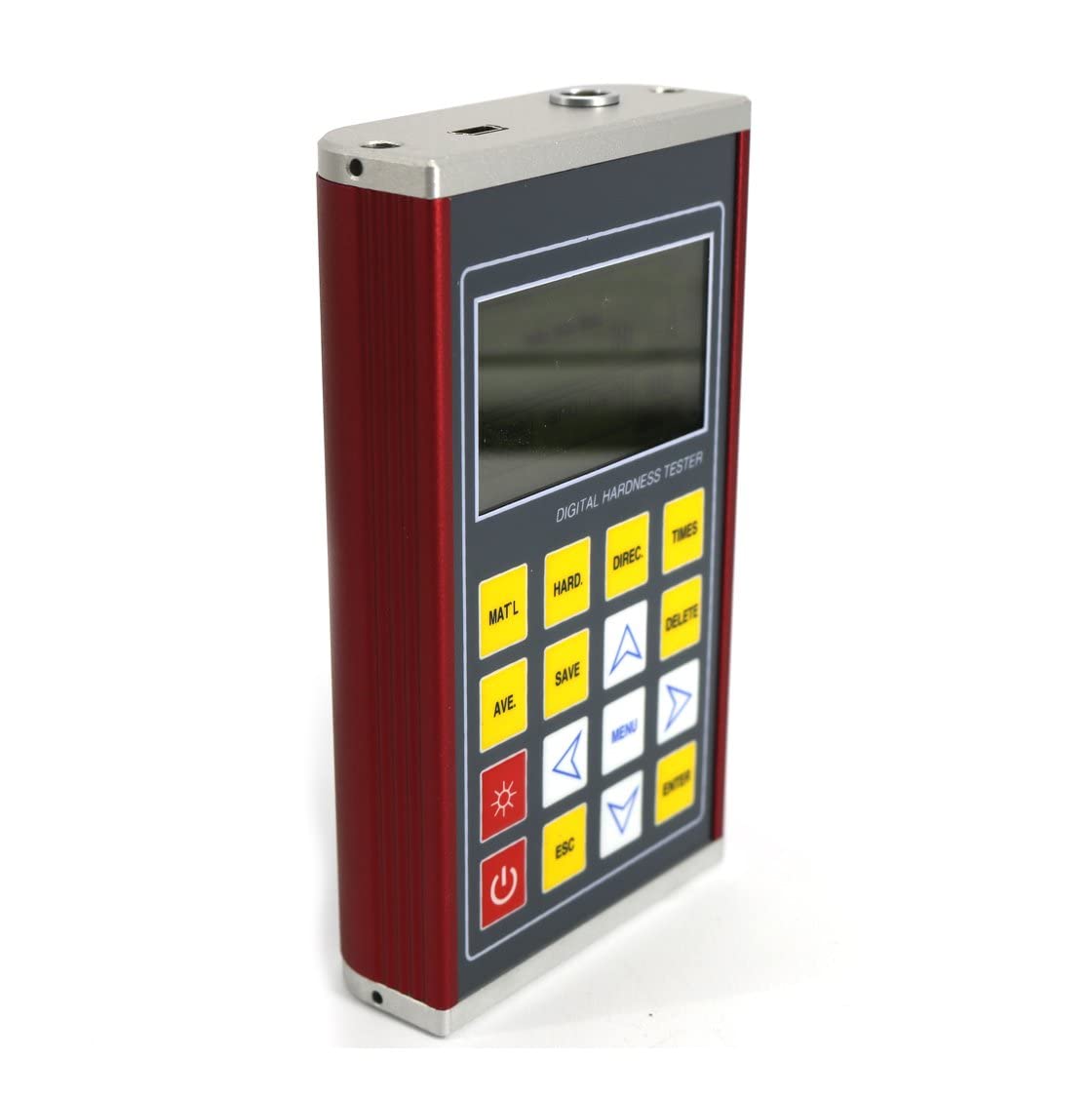

Leeb Hardness Tester Meter Steel Hardness Durometer Multiple Hardness Scale of LCD Display Range 170 to 960HLD Data Storage Function

Shipping Policy : Battery Not included during the shipping KH200 portable Leeb hardness tester Features: Full metal shell design, sturdy, portable, high reliability; English displaying and menu operating, the operation is easy and convenient. Hermetically sealed metal shell, solid and durable, has excellent resistance to vibration, shock and electromagnetic interference ability. LCD display of 128×64 matrix is used; Back light display has been used to make convenient for the use in poor light; Main Application: 1.The assembled machinery and permanently installed parts 2.Die cavity of molds 3.Heavy work piece 4.Bearings and other parts 5.Cases which require the test result with normalized original recording 6.Material identification of the metal material warehouse 7.Quick tests of large range and multipoint measuring positions for heavy 8.Workpiece. Technical Specifications Measuring Materials: Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel Measuring Range: HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7)Indication Error: ±6HLD (D impact device)Measuring Direction: 360°Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HSData Memory: Max 600 groups (relative to impact times 1~32 adjustable)Power: AA battery 2pcs (working time 200 hours if backlight off)（Battery not included in the package）Working Temperature: -20°C~55°CStandard Accessories: KH200 Host, Standard D Impact Device, Standard Calibration Block,Standard Support Ring,Brush, USB Cable, PC Software,User Manual,nstrument Case, Warranty

• ◆Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HS; Measuring Range: HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7);
• ◆ Test at any angle, even upside down; Has a starting value calibration function, ensure the data is applicable and accurate in different codes and standards;Battery information indicates the rest capacity of the battery and the charge status;
• ◆ Max 600 groups（impact times:32～1）of data can be stored ; Upper and lower limit of hardness can be preset; When the tested value exceeds the limits, alarm will send out automatically to make convenient for the requirements of batch measurements.
• ◆ Has the function of automatic alarm. Pre-set tolerance limit, beyond the range has automatic alarm, especially suitable for batch testing; Menu operation, information rich, intuitive, the realization of arbitrary switching material and hardness of system's key type, simple and convenient;
• ◆ Applicable materials: Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.
